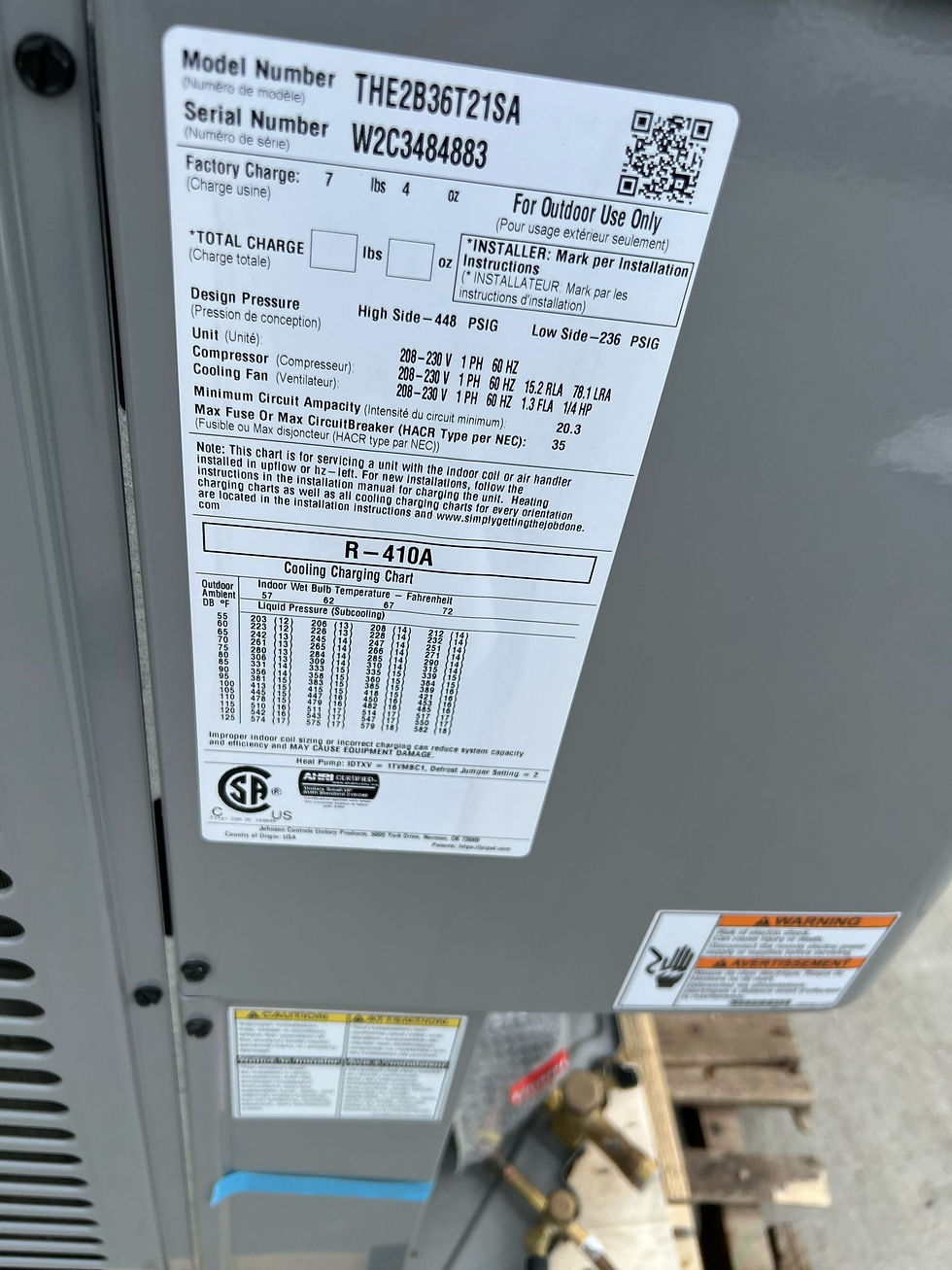

York THE2B36T21SA 3 ton Heat Pump Single Stage 230v 1PH


Efficient, dependable, year-round comfort.

Sound Levels as low as 72 dBA
Standard 10 year parts and compressor warranty.

Get the next generation of efficiency and energy savings with the proven performance of the Johnson Controls THE2 14.3 SEER2 1-2-Stage Heat Pump. This efficient heat pump meets 2023 Department of Energy (DOE) minimums with 14.3 SEER2 cooling, and 8.0 HSPF2 heating efficiency requirements to keep your family cool in summer and warm in winter. The Johnson Controls THE2 reduces your energy bills replacing older, less efficient equipment. The Johnson Controls THE2 offers dependable performance, energy efficiency and operating economy – all backed by the Good Housekeeping Seal.

Automotive-grade, powder-paint finish is 1,000-hours salt spray rated to provide years of corrosion-free performance
An impact-resistant, powder-painted, galvanized steel, two-piece extruded louver coil guard protects your investment, yet is easy to remove for cleaning
Single- and three-phase models available
Top Discharge - Warm air is blown up, away from the structure and any landscaping and allows compact location on multi-unit applications.
Unit can be matched with a YORK® or Johnson Controls residential gas furnace to create a dual-fuel comfort system that automatically switches between heat sources based on energy costs or capacity
All models will have a two-stage compressor with the exception of the 1.5 ton model which will have a single-stage compressor
Environmentally Friendly - CFC-free R-410A refrigerant delivers environmentally friendly performance with zero ozone depletion.
Low Operating Sound Levels - Developed using CFD and FEA tools, the sturdy cabinet and top design provides sound performance of 76 dBA or lower. Compatible accessories for further sound reduction are also available.

Extruded louver coil guard
High pressure relief valve and temperature sensor
High and low pressure switches
Factory installed filter-drier
Low operating sound levels
Top discharge 208/230V


BtuH Cooling    35,000
BtuH Heating Input    34000
COP    3.40
Depth    31-3/4"
EER    12.0
Energy Star    Y
HSPF    8.55
Height    36-1/4"
Liquid Conn.    3/8"
Max. Fuse Size    30
Min. Circuit Amps    19.6
Motor Type    PSC
Nom. Tons    3
Refrigerant    R-410A
SEER    14
Suction Fitting    3/4"
Volts    208/230
Width    35-1/4"
Wt. Lbs.    191
Shipping Weight    191.00
Shipping Width    35.25
Shipping Length    31.75
Shipping Height    36.25
