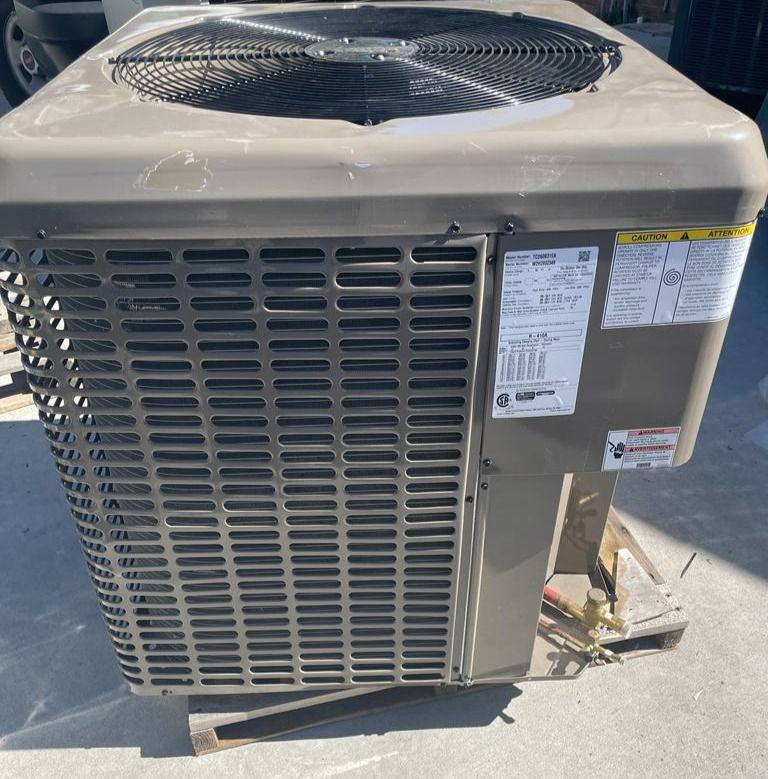

York TCD60B31SA 5 TON SPLIT SYSTEM AIR CONDITIONER 208-230/60/3

DESCRIPTION
The TCD models are the latest iteration in our successful LX
Series split system air conditioner lineup. Optimized for the 3
phase 13 SEER National Minimum Efficiency, these outdoor
units are specifically designed to be matched with York indoor
coils, furnaces, and air handlers to provide a complete system
solution.

FEATURES
• Small Footprint - Minimum footprint for easier handling,
transportation, and installation.
• Easier Installation - Independent panels provide quick
access for unit setup. Installation time is reduced by easy
power and control wiring access. Options are provided for
indoor piston or TXV. The factory installed filter-drier and factory charge for a 15-Ft lineset means less time spent brazing
and charging the system. The small base dimension and
reduced unit clearances make for easier retrofits.
• Accessible Information - QR code on unit provides quick
access to technical documents and warranty information.
• Durable Finish - The coated steel wire fan guard, coated
external fasteners, and pre-treated G90-equivalent galvanized steel chassis components resist corrosion and rust
creep. Champagne colored powdercoat paint further protects
external panels.
• Quality Coils - The high efficiency microchannel aluminum
coil is manufactured using an improved material system providing reliable performance and small unit size.
• Rugged Coil Protection - Coils are protected from mechanical damage by a proven stamped steel coil guard design.
• Protected Compressor - Compressors are protected internally by a high pressure relief valve and a temperature sensor, and externally by the system high pressure switch. The
liquid line filter-drier is factory installed to protect the compressor against moisture and debris.
• Reliable Operation - Ball bearing fan motors provide superior performance in extreme temperatures.
• Environmentally Friendly - CFC-free R-410A refrigerant
delivers environmentally friendly performance with zero
ozone depletion.
• Top Discharge - Warm air is blown up, away from the structure and any landscaping and allows compact location on
multi-unit applications.
• Low Operating Sound Levels - Developed using CFD and
FEA tools, the sturdy cabinet and top design provides sound
performance of 77 dBA or lower. Compatible accessories for
further sound reduction are also available.
• Better Service Access - Diagonal base valves with open
access for low-loss fittings, single panel access to the electrical controls, swing out control box for full corner access, and
removable fan guard allow easy access for unit maintenance.
• Agency Listed - Safety certified by CSA to UL 1995 / CSA
22.2. Performance certified to ANSI/AHRI Standard 210/240
in accordance with the Unitary Small Equipment certification
program.
