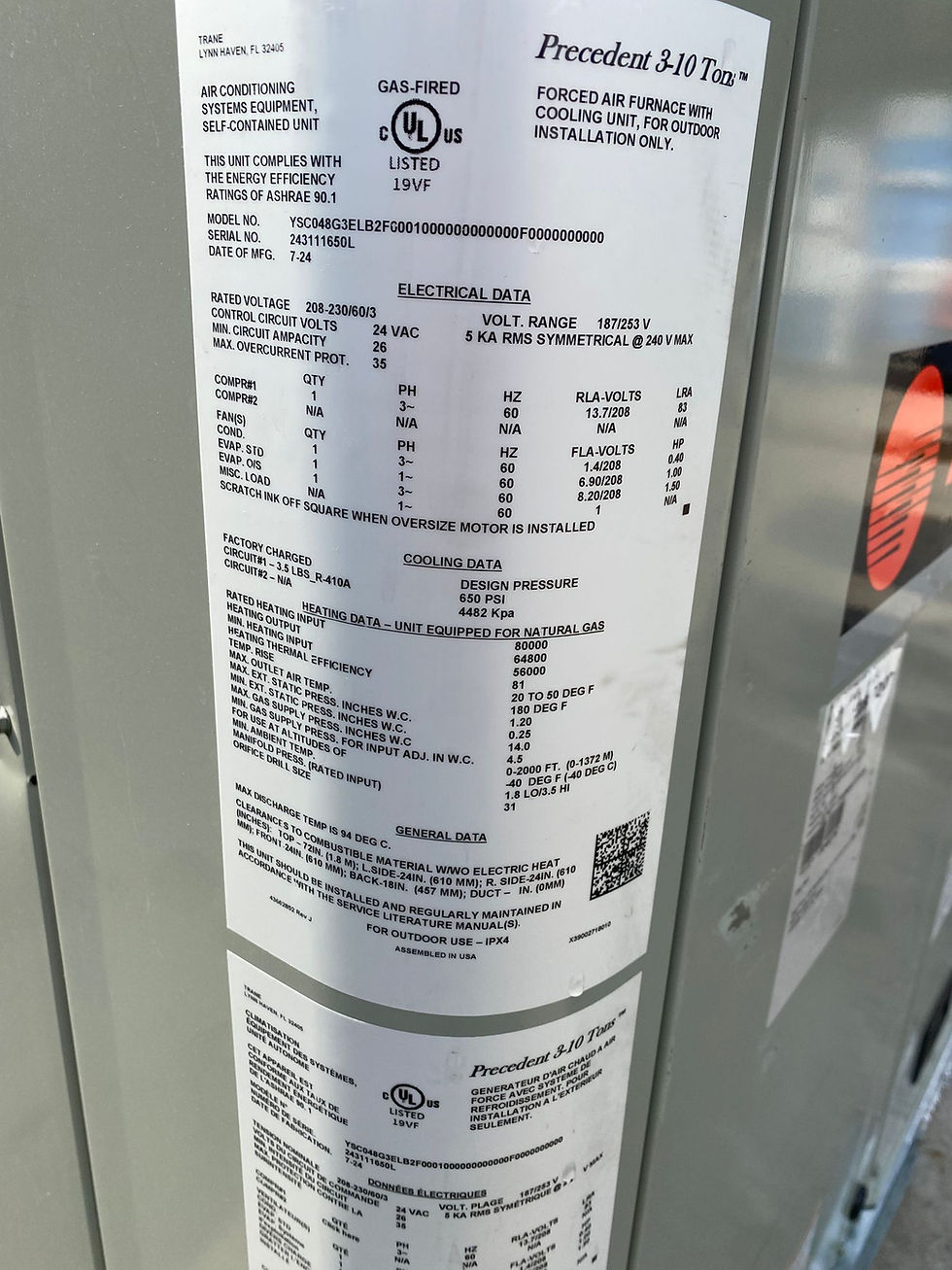

Trane 4 Ton Commercial Packaged Gas/Electric Unit (208/230v 3ph)

Model YSC048G3ELB2F0001

Standard Features:
• Trane scroll compressors on all 3-5 ton units
• Colored and numbered wiring
• Phase Monitor, R-410A, 3 Phase Units
• Provisions for through the Base Gas and Condensate Drain Connections
• Crankcase Heaters
• 2" throwaway filters provided on all units
• Liquid Line Refrigerant Drier
• Operating Charge of R-410A
• IAQ Sloped Drain Pans
• Low Ambient to 40°F on Electromechanical models
• Low Ambient to 0°F on ReliaTel™ models
• 5 - year Limited Compressor Warranty (when registered)
• 5 - year Limited Heat Exchanger Warranty (when registered)
• 1 - year Limited Parts Warranty (when registered)

Technical Specs
Actual Height 40-7/8
Actual Length/Depth 69-7/8
Actual Weight 492
Actual Width 44-1/4
Advanced Unit Controls Standard Unit Controls
AFUE Rating % 82
Airflow Configuration Convertible
Coil Coating Standard Coil With Hail Guard
CoilDesign Full Face
Communications Options No Communications Interface
Compressor Type Scroll
Controls ReliaTel Microprocessor Control
Convenience Outlet Convenience Outlet
Cooling Capacity 49,000 BTUH
CSA Certified 236-M90
Disconnect/Circuit Breaker (Three-Phase only) No Disconnect/No Circuit Breaker
Downflow Return Dimensions (W X L X H) In 17-3/4 x 33-3/4 x 14
Downflow Roofcurb Dimensions (W X L X H) In 50-3/8 x 84-1/2 x 14
Downflow Supply Dimensions(W X L X H) In 28-9/16 x 69-1/2 x 14-1/16
Drain Connection Size (In) 3/4 in. NPT
EER 12
Efficiency (%) 81
Efficiency Tier Standard Efficiency
ElecPhases 3
ElecVolts 208-230V
Filter Depth (In) 2
Filter Height (In) 35
Filter Qty 2
Filter Type Throwaway
Filter Width In 20
Finish Zinc Plated
Flow Rating (CFM) 1,600
Frequency (Hz) 60
Fresh Air Selection No Fresh Air
Gas Connection Pipe Size High (in) 3/4
Gas Connection Pipe Size Low (in) 1/2
Gas Connection Pipe Size Mid (in) 1/2
Gas Supply Line Pressure LP maximum 14
Gas Supply Line Pressure LP minimum 11
Gas Supply Line Pressure Natural maximum 14
Gas Supply Line Pressure Natural minimum 4.5
Heat Type High Heat
Heating Input (High) BTU 130,000 / 91,000
Heating Input (Low) BTU 80,000 / 56,000
Heating Input (Mid) BTU 100,000 / 70,000
Heating Output (High) BTU 105,300 / 73,700
Heating Output (Low) BTU 64,800 / 45,300
Heating Output (Mid) BTU 81,000 / 56,700
Hinged Service Access/Filters Standard Panels/Standard Filters
IEER 15
Indoor Coil-Face Area sq-ft 12.36
Indoor Coil-FPI 16
Indoor Coil-Rows 2
Indoor Fan HP 3
Indoor Fan Type FC Centrifugal
Indoor Fan-Drive Microchannel
Indoor Fan-Number of Speeds 1,740
Major Design Sequence Microchannel Type Evaporator and Condenser Coils
Manufacturer Part Number YSC048G3RHB0000
Material Galvanized Steel
Max Nominal Capacity BTU 48,000
MCA 26
Media Line Pressure(Minimum/Maximum) 4.5/14 In-Wc at Natural Gas, 11/14 In-Wc at LP
Media Type Natural Gas/LP
Minor Design Sequence Second Sequence
Model-Phase 3
Nominal CFM 1,600
Nominal Input BTUH 130,000
Number of Burners (High) 4
Number of Burners (Low) 2
Number of Burners (Mid) 3
Number of Compressor 2
Number of Drain Connection 1
Number of Indoor Fan Motor 1
Number of Indoor Fan Speed 1
Number of Indoor Fan Used 1
Number of Outdoor Fan Motor 1
Number of Outdoor Fan Used 1
Number of Phase 3
Outdoor Coil-Face Area sq-ft 20.77
Outdoor Coil-FPI 23
Outdoor Coil-Rows 1
Outdoor Coil-Tube Size (In) 0.63
Outdoor Coil-Type Microchannel
Outdoor Fan - CFM 4,050
Outdoor Fan - Diameter In 22
Outdoor Fan - Drive Direct
Outdoor Fan - HP 1/3
Outdoor Fan - Number of Speeds 1
Outdoor Fan - Speed 1,100
Outdoor Fan - Type Propeller
Output BTUH 105,300
Performance Htg GAS - Pipe Size 3/4
Power - Fuse Size - MAX (A) 35
Power Consumption (KW) 4
Power Supply 208-230V/3Phase/60Hz
Refrigerant Charge lbs 3.5
Refrigeration Controls TXV
Refrigeration System Option Standard Refrigeration System
SEER 14
Series/Model YSC
Shipping Dimension UOM IN
Shipping Height 42.4
Shipping Length/Depth 71.5
Shipping Weight 610.0
Shipping Weight UOM LB
Shipping Width 45.5
Smoke Detector No Smoke Detector
Sound Rating (dB) 80
Specifications - AHRI 210/240
Specifications - ANSI Z21.47
Specifications - CFR 10 Part 431
Specifications - UL Listed UL 1995
Supply Fan/Drive Type/Motor Standard Drive
System Monitoring Controls Standard Monitoring System & No Monitoring Controls
Temperature Range (Deg F) 0 to 115
Through The Base Option No Through-the-Base Provisons
Tonnage 4
Uncrated Dimensions (HxWxD) 40.88 X 44.25 X 69.88 in.
Unit Hardware Enhancements No Enhancements
Description YSC048G3RHB**000100000000000000000000000
Long Description
4 TON PRECEDENT; PACKAGED GAS/ELECTRIC; 208-230V/3-PHASE; STANDARD EFFICIENCY; CONVERTIBLE AIRFLOW; RELIATEL CONTROLS; STANDARD MOTOR; HIGH HEAT; NO FRESH AIR; FACTORY-INSTALLED HAIL GAURDS
