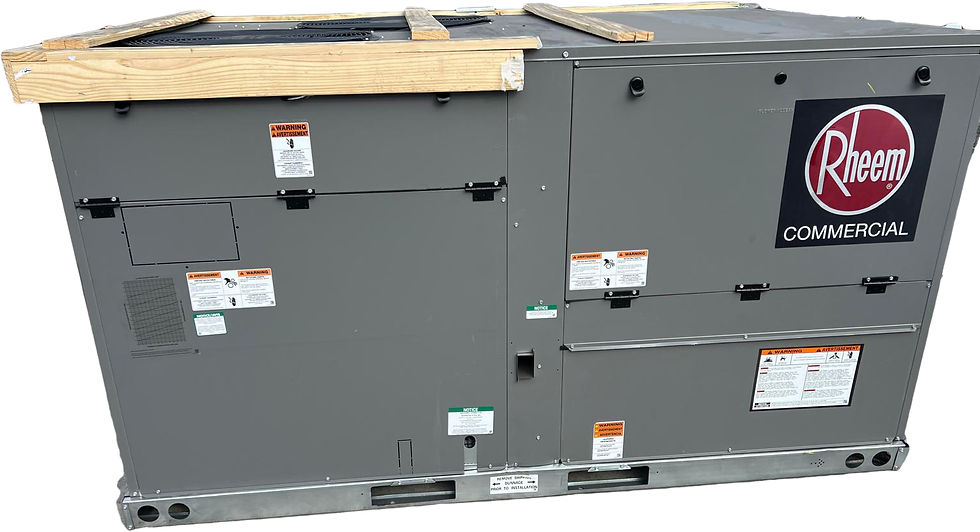

Rheem 8.5 ton Gas Pack Renaissance Line Classic Series Packaged RTU

Features
Renaissance products are designed with a flexible footprint, thoughtfully engineered for easy, direct replacement of most other manufacturer's products without a roofcurb adapter. These units also boast industry-leading serviceability features, including the slide out, qwik-clean drain pan, the qwik-slide blower assembly, tool-less access to the patented flex-fit filter rack, and easy-access external gauge ports. Units meet or exceed ASHRAE 90.1 energy efficiency levels and are rigorously SEET tested to perform reliably in extreme environments, delivering powerful cooling operation up to 125°F.
Standout Features:
- Optional hot gas reheat (HumidiDry®) available on all models for tighter humidity control and better comfort
- Patented flex-fit filter rack and qwik-clean drain pain for quick, easy service and maintenance
- PlusOne® Diagnostics come standard through CoreCommand™ with easy-to-read and understand fault codes, history, and input/output options to meet building compliance needs
- Optional ClearControl™ includes factory-installed Direct Digital Control (DDC) and sensors for easy connectivity through Modbus®, LonWorks®, or BACnet®
Available power options: 208-230V / 3 phase / 60 Hz • 460V / 3 phase / 60 Hz • 575V / 3 phase / 60 Hz
Limited Warranty (Commercial Applications): Parts – 1 Year • Compressor – 5 Years • Standard Heat Exchanger – 10 Years • Stainless Steel Heat Exchanger – 20 Years. Additional extended warranty packages available through ProtectionPlus®.
All units are factory run tested and shipped with R-454B refrigerant charge.

Specification
Sound Level    88 dB
Refrigerant Charge 114 oz
Voltage     460 V
Frequency 60 Hz
Number of Phases    3
Minimum Overcurrent Protection Device Size    See Spec Sheet
Maximum Overcurrent Protection Device Size    See Spec Sheet
Weight    868 lb  394 kg
Shipping Weight    907 lb   411 kg

Cooling Performance
Nominal Cooling Capacity
99000 Btu/h29 kW8.5 TR
System Performance EER
11
System Performance IEER
14.6
Nominal CFM
3400 ft³/min1605 L/s
AHRI Rated CFM
3300 ft³/min1557 L/s
AHRI Net Cooling Capacity
96000 Btu/h
Net Sensible Cooling Capacity
72000 Btu/h
Net Latent Cooling Capacity
24000 Btu/h
Net System Power
8.73 kW

Compressor
Type
Single-Stage Scroll
No. Stages
2


Outdoor Coil
Fin Type
Louvered
Tube Type
MicroChannel
MicroChannel Depth
0.81 in
Face Area
25.6 ft²
Rows
1
FPI
23

Indoor Coil
Fin Type
Louvered
Tube Type
MicroChannel
MicroChannel Depth
1.26 in
Face Area
10.9 ft²
Rows
1
FPI
20
Refrigerant Control
TX Valves
Drain Connection No.
1
Drain Connection Size
0.75 in
