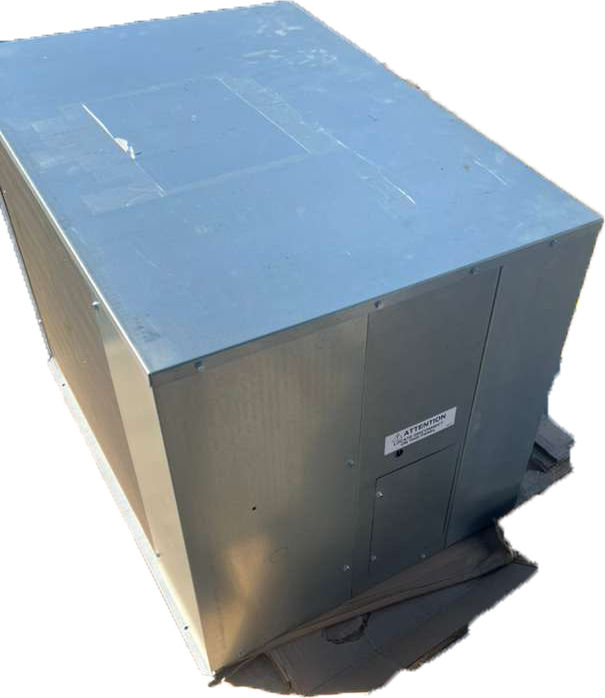

Manitowoc CVDT1200 Remote Ice Machine Condenser 208 230V 1 Phase

The Manitowoc Ice CVDT-1200 remote ice compressor uses CVD technology to harvest ice. It has a large-capacity refrigerant accumulator to protect the unit in a variety of operating conditions. This Manitowoc Ice CVDT-1200 remote condenser unit is designed to operate out of customer-facing locations, isolating heat and noise production.

Product Details
CVD technology ice harvest system uses vapor refrigerant
Uses a large-capacity refrigerant accumulator to protect the compressor in different operating conditions
System is designed to operate out of customer environments, isolating noise and heat production
Ambient operating temperature range: -20 to 130 degrees F
14.8 A, 1.5 HP
208-230 V/60 Hz/1 ph

Specifications
Manufacturer    Manitowoc Ice
Depth (in)    24.13
For Use With    IB-1090C & IBT-1020C & IT1200 Series (QuietQube)
Height (in)    25.75
Hertz    60
Part Type    Compressor
Phase    1
Series    Quiet Qube
Special Features    Remote
Voltage    208/230
Width (in)    34
Weight    208.00
