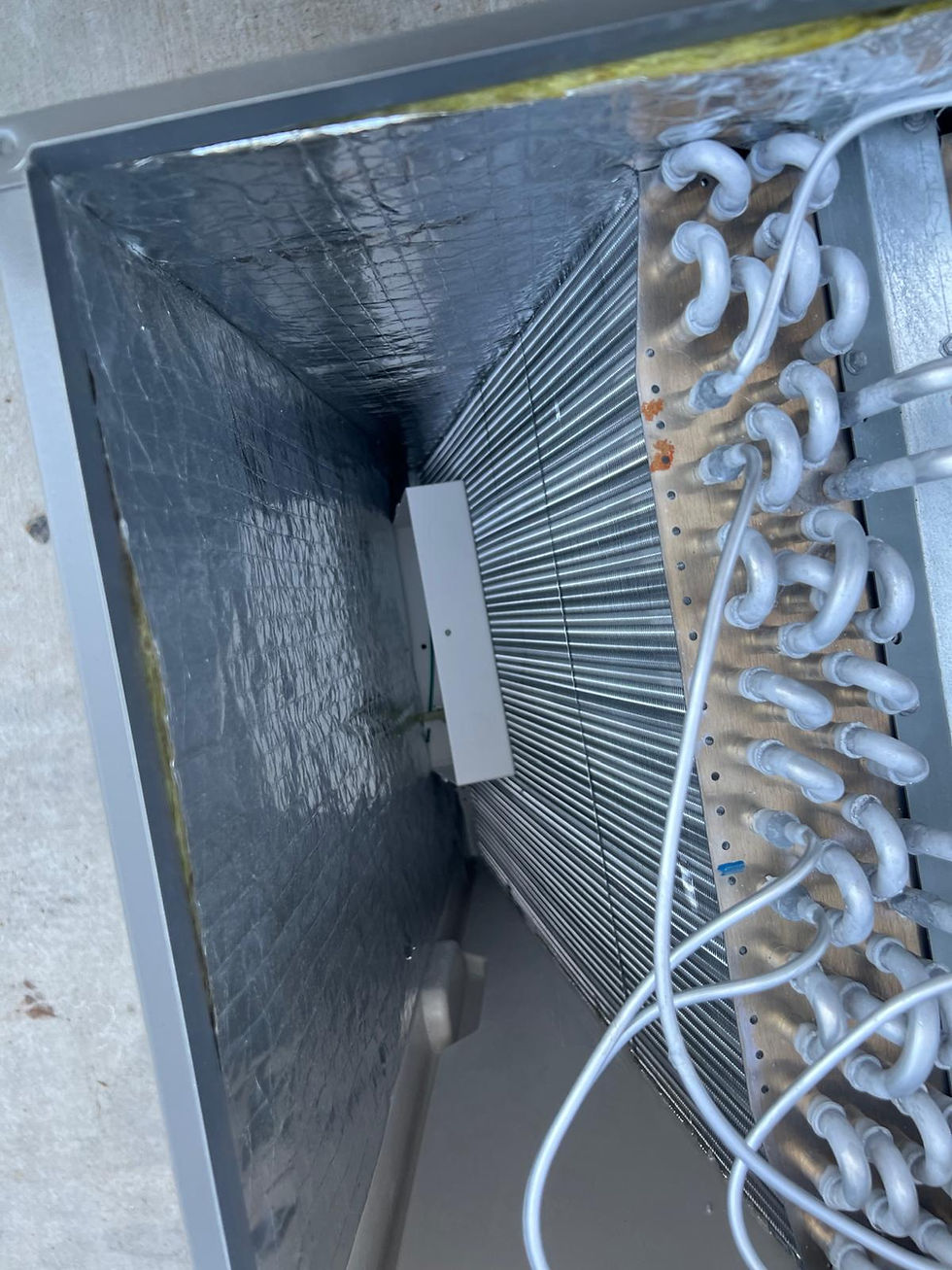

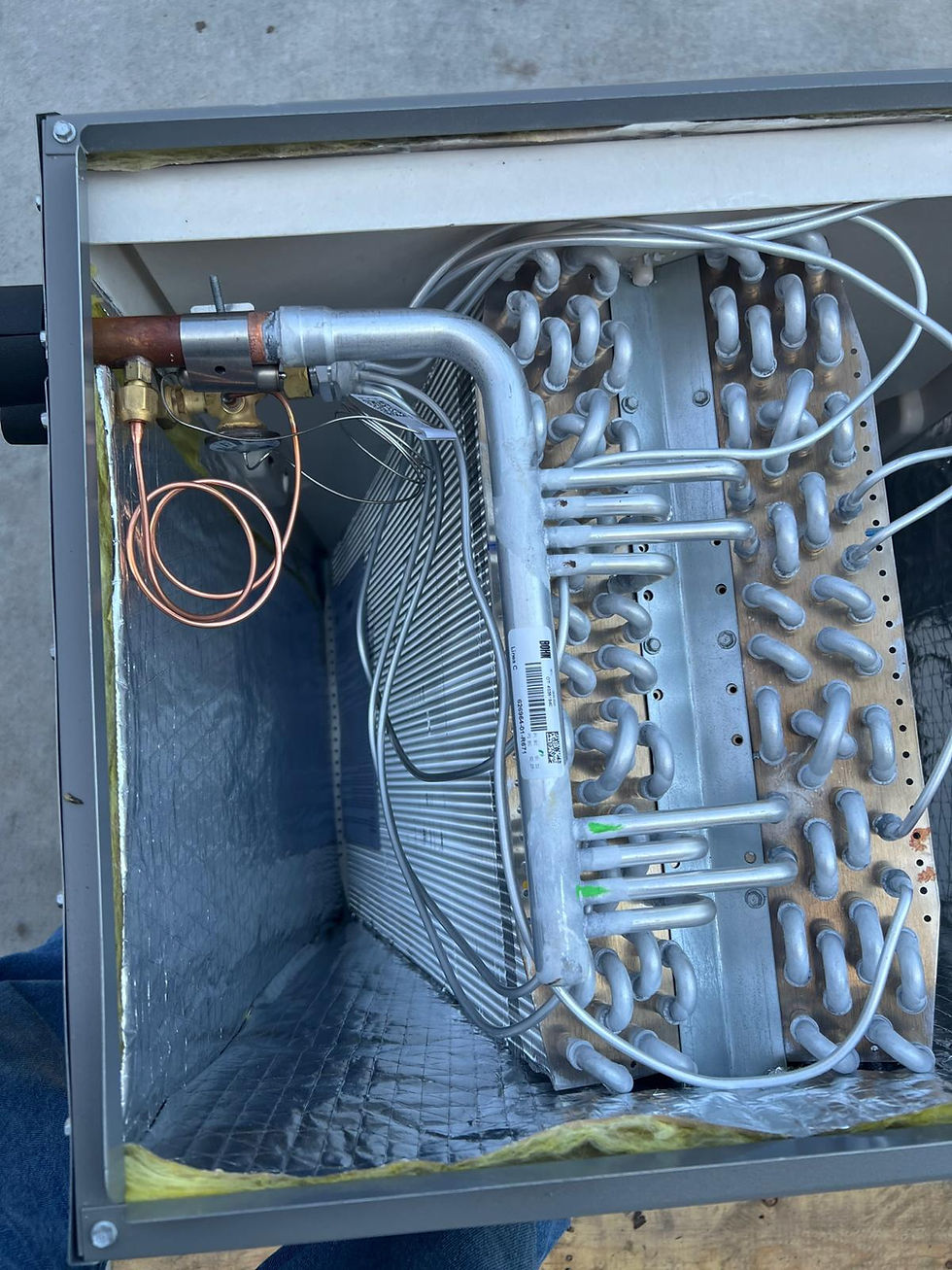

Lennox 3.5 Ton Evaporator Horizontal Cased A Coil R410A

Product Overview

For every application and configuration, our cooling coils are the perfect choice. Introducing CHX35 horizontal evaporator coils by Lennox they are designed for use with air conditioners and heat pumps and are supplied with a factory-installed R-410A check/expansion valve. Factory-installed valve ensures highly efficient operation across a wide range of environmental conditions. The CHX35 family of coils are designed with aluminum tube construction which provides great heat transfer and additional resistance to environmental contaminants. Durable components, such as corrosion-resistant casing and drain pans, help guard against unexpected service calls. CHX35-42B-6F-1 coil is built to high standards and is backed by excellent warranties

CHX35, 3.5 Ton
Cased Evaporator Coil
Aluminum Cased
Horizontal
R-410A

Specification
Brand Lennox
Catalog Number 16Y11
Model/Part Number CHX35-42B-6F
Base Unit of Measure Unit(S)
Family CHX35
Series Elite
Configuration Horizontal
Nominal Cooling Capacity 3.5 Ton
Metering Device TXV (R-410A)
Product Depth 21.5 Inch
Product Width 31.5 Inch
Product Height 17.5 Inch
Cased Cased
Material Type Aluminum
Type Cased Evaporator Coil
Color Lennox Gray
Gross Weight 67 Lbs.
Suction Line OD 7/8 Inch
Liquid Line OD 3/8 Inch
Refrigerant Type R-410A
