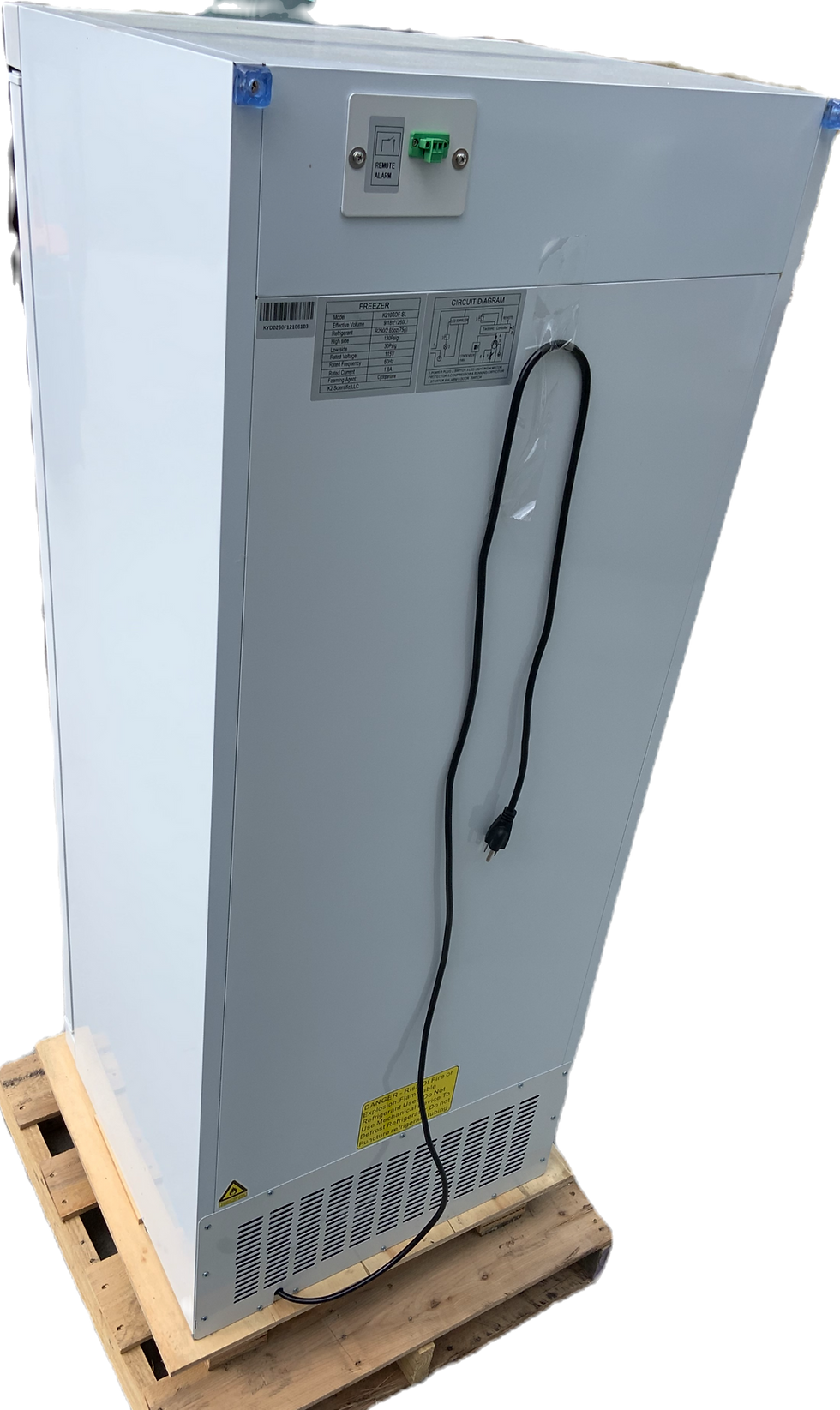

K2 Scientific K210SDF 1 Door Freezer


K2’s 10 cu. ft. freezers are designed for the most rigorous life science and commercial applications. Featuring an intelligent microprocessor controller and adjustable temperature control, these units offer a temperature stability of ±2°C from the set point. These freezers use environmentally friendly, natural refrigerants are fully compliant with new EPA/SNAP/UL regulations.

Intelligent microprocessor controller with digital display and adjustable temperature control
Variable (cycle) defrost
Audible and visual high or low temperature alarms
Magnetically sealed door with rapid cool-down mode after door opening
Efficient, exterior switch-activated interior LED lighting
White epoxy-coated wire shelves standard
Shelves are adjustable by 1-inch increments
Cabinet constructed of white powdercoated steel with CFC-free, high density insulation
R600a refrigerant, an environmentally green option compliant with future EPA and SNAP non-ozone depleting mandates
Forced air circulation aids temperature stability and uniformity
Leveling legs
Keyed door lock
Remote alarm contacts
0.5” temperature probe and data logger access port
Built and shipped from ISO 9001:2008 manufacturing and distribution facilities
Each cabinet undergoes three quality control checks prior to shipping
Warranty: Two-year full replacement for parts or compressor failure
Storage Volume 10 cu ft

Performance Characteristics
Exterior (W x D x H) 23.6”x 22.2”x 59.4”
Interior (W x D x H) 19.5” x 15” x 50.5”
Insulation CFC-free, high density insulation
Doors 1
Door Perimeter Heater Standard
Shelves 6
Access Port 0.5” Probe port
Leveling Legs Standard
Unit Weight 176 lbs

Perfomance
Peak Variance*  7.19o C
Stability  + / - 2.0o C
Energy Consumption (KWhr/day)* 1.9
Adjustable Set Point Range - 10o C to -30o C
Factory Set Point - 25o C
Electrical Power/ Current 120v 60 Hz
Building Supply Rating 15 Amp
Power Plug/Cord Length NEMA 5-15 / 10ft cord
VFC Compliant Yes
Energy Star Yes
Indoor/Outdoor Use Indoor use only
Application Environment Non-corrosive, non-flammable, non-explosive
Ambient Operating Temp. (o C) 25o C to 32°C

Refrigeration
Refrigeration System Vapor compression system, forced-air
Compressor Hermetically sealed compressor
Condenser Type Foamed in
Expansion Device Capillary tube
Evaporator Type Cold wall
Defrost Variable (cycle)
Refrigerant R600a (Isobutane)- EPA, SNAP compliant

Controller/System Configuration
User Interface Microprocessor with digital display
Power Switch On/Off
Controller Type Digital controller
Security Lockable doors
Control Sensor NTC probe
Remote Alarm Terminals Standard
High/Low Alarms Standard
Warranty manufacturer  2- years full replacement from the manufacturer

*Data according to EPA Energy Star https://www.energystar.gov/productfinder/product/certified-lab-grade-refrigeration/results

Spec sheet
https://cdn11.bigcommerce.com/s-mnhq0tp2jq/content/Product_Pdfs/2020-SPEC/K2-Spec-K202-204-210SDF.pdf
