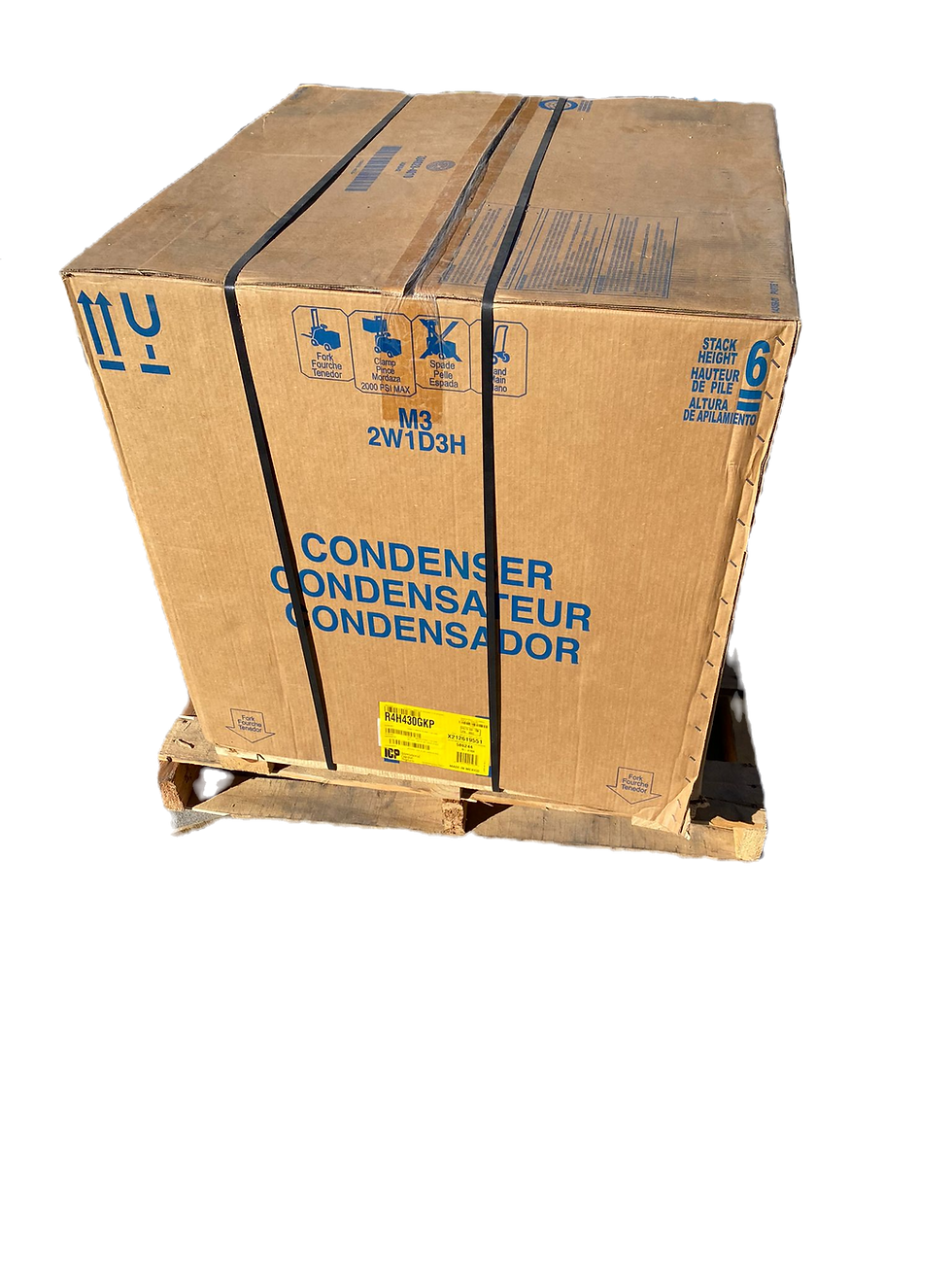

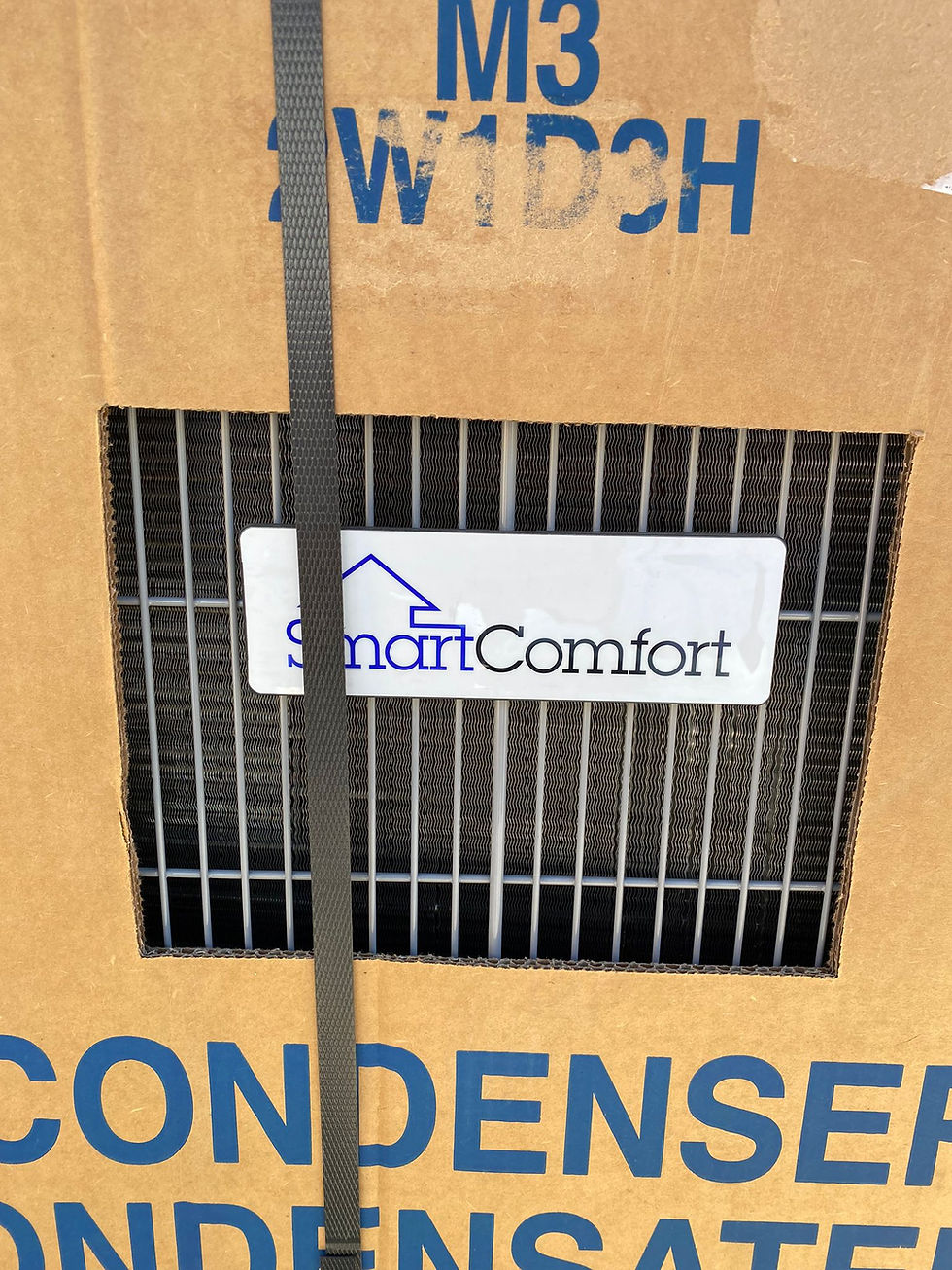

ICP SINGLE-STAGE HEAT PUMP 14 SEER 2.5 TON 208/230 V 1-PHASE

Refrigeration Circuit
Scroll compressors on all models
Suction line accumulator factory installed
Integrated solid state control with Time-Temperature Defrost
High and Low pressure switches
Copper tube / aluminum fin coil

Easy to Install and Service
Easy Access service valves on all models
External high and low refrigerant service ports
Only two screws to access control panel
Factory charged with R-410A refrigerant

Built to Last
Pre-painted cabinet finish over galvanized steel
Coated inlet grille with 2" spacing standard on even sizes

Manufacturer Warranty:
5 year Compressor, Coil and Parts
(10 year with timely registration)
Length (In.):31 3/16
Width (In.):31 3/16
Height (In.):31 11/16
Shipping Weight (Lbs.):180
Connection Liquid (In.):3/8
Connection Suction (In.):3/4
Cooling Capacity (BTUH):28600
Cooling Efficiency (EER):11.5
Cooling Efficiency (SEER):14.0
MCA (Amps):18.3
Nominal Tons: 2.5
Nominal Tons: 2.5
Refrigerant: R410A
Sound Rating Decibels:77
Voltage: 208-240/1
