Goodman AWST18SU1405 1.5 Ton Wall Mounted Air Handler with 5 kW Heat Kit
Goodman air handlers are an integral part of finishing a total home environment control system. The AWST plays a key role in reducing indoor humidity to create a much more comfortable environment. In addition, the AWST works with a multi-speed ECM motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
- All-Aluminum Evaporator Coil
- The AWST model comes with a durable all-aluminum evaporator coil and a fully adjustable thermostatic expansion valve to optimizes heat transfer.
- Easy Installation
- The AWST air handler can be installed vertically on the wall with the provided wall hanging bracket. This air handler features a thermoplastic drain pan with bottom primary and secondary drain connections and a factory-installed pull-type disconnect.
- Electric Heat
- The AWST air handlers come with a rust-resistant nickel chromium heating elements that are sequence-controlled.
- Built-In Filter Rack
- In addition to your air handler, the AWST comes with a built-in filter rack and the filter is included.
- Efficient Circulation
- The direct-drive, multi-speed blower motor allows air volume variation for heating and cooling ensuring efficient circulation.
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.

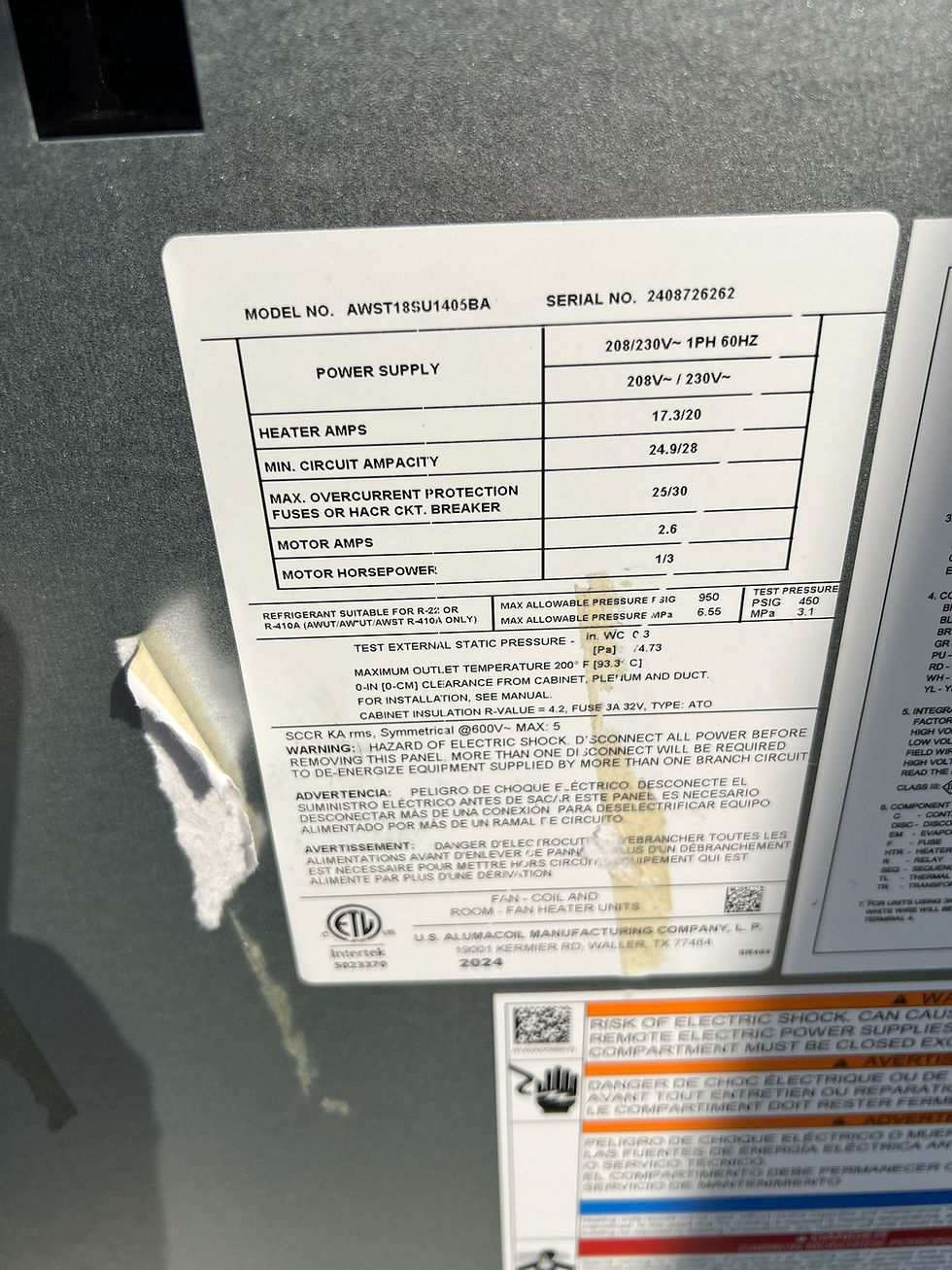

Specifications
Type Air Handler
Product Line AWST
Product Category Air Handler
Refrigerant Type R-410A
Blower Motor Type Multi-Speed
Motor Type ECM
Mount Type Wall Mounted
Installation Location Indoor
Electric Heat Yes
TXV Installed Yes
Capacity 1.5 Tons
Cooling BTU 18000
Electric Heat Capacity 5.0 kW
Maximum Air Flow 846 CFM
Minimum Air Flow 630 CFM
Voltage 208/230 Volts
Phase 1
Frequency 60 Hz
Minimum Circuit Ampacity 24.9 Amps
Recommended Breaker Size 25/30 Amps
Suction Connection Size 5/8 Inch
Liquid Connection Size 3/8 Inch
Drain Outlet Diameter 3/4 Inch
Product Height 36 Inches
Product Width 20 1/4 Inches
Product Depth 16 1/8 Inches
Product Weight 69 Pounds
Shipping Weight 120 Pounds
ETL Listed Yes
AHRI Certified Yes
ISO Certified Yes
Warranty 10 Years
Parts Warranty 10 Limited Years
