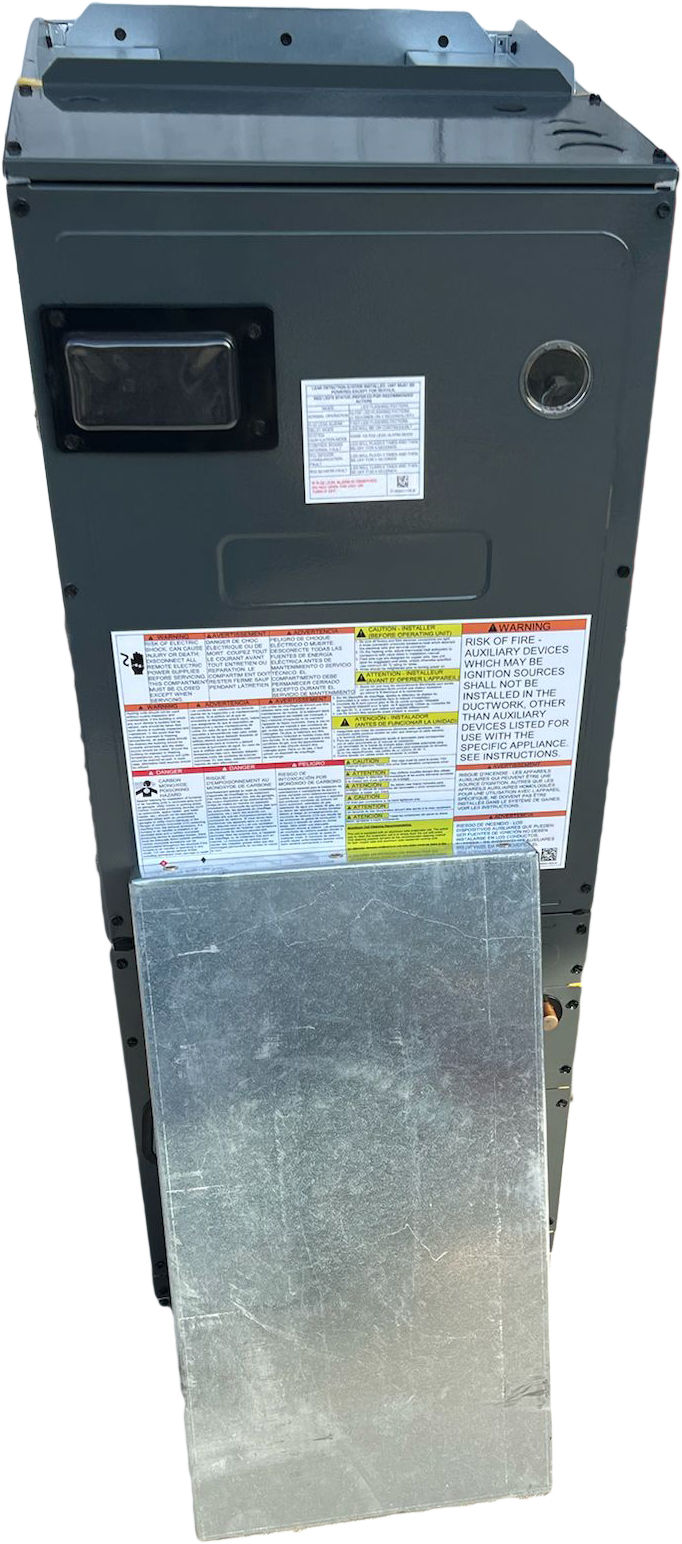

Goodman 2 Ton Air Handler Multi-Position 9 Speed ECM Motor with TXV R-32

The AMST is all about effective air distribution. It includes an all-aluminum evaporator coil and internal factory-installed valves for cooling and heat pump applications thermal expansion. These advanced components excel at ensuring that your home stays comfortable and your central system runs efficiently. The ECM fan motor is a huge step up from older models as it requires less electricity to operate and provides more consistent air circulation.
Internal Thermostatic Expansion Valve
The AMST has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
Efficient Circulation
The direct-drive, multi-speed blower motor allows air volume variation for heating and cooling ensuring efficient circulation.
All-Aluminum Evaporator Coil
Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
SmartFrame™
This air handler features a rigid SmartFrame™ sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
Condensate Management
The AMST includes a DecaBDE-free thermoplastic drain pan with secondary drain connections, these elements help prevent the formation of condensation and keep your system running smoothly.
Secure Cabinet
This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, leather grain embossed cabinet finish.
Extended Warranty
Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.


Specifications

Refrigerant Type R-32
Blower Motor Type Multi-Speed
Motor Type ECM
Mount Type Multi-Position
Electric Heat
Capacity 2 Ton
Cooling BTU 24000
Maximum Air Flow 1215 CFM
Minimum Air Flow 825 CFM
Voltage 208/230 Volts
Phase 1
Frequency 60 Hz
Minimum Circuit Ampacity 5.8 Amps
Recommended Breaker Size 15 Amps
Suction Connection Size 3/4 Inch
Liquid Connection Size 3/8 Inch
Drain Outlet Diameter 3/4 Inch
Cabinet Width 17 1/2 Inches
Product Height 45 Inches
Product Width 17 1/2 Inches
Product Depth 21 Inches
Product Weight 97 Pounds
Shipping Weight 112 Pounds
Certifications
ETL Listed Yes
AHRI Certified Yes
ISO Certified Yes
Parts Warranty 10 Limited Years
