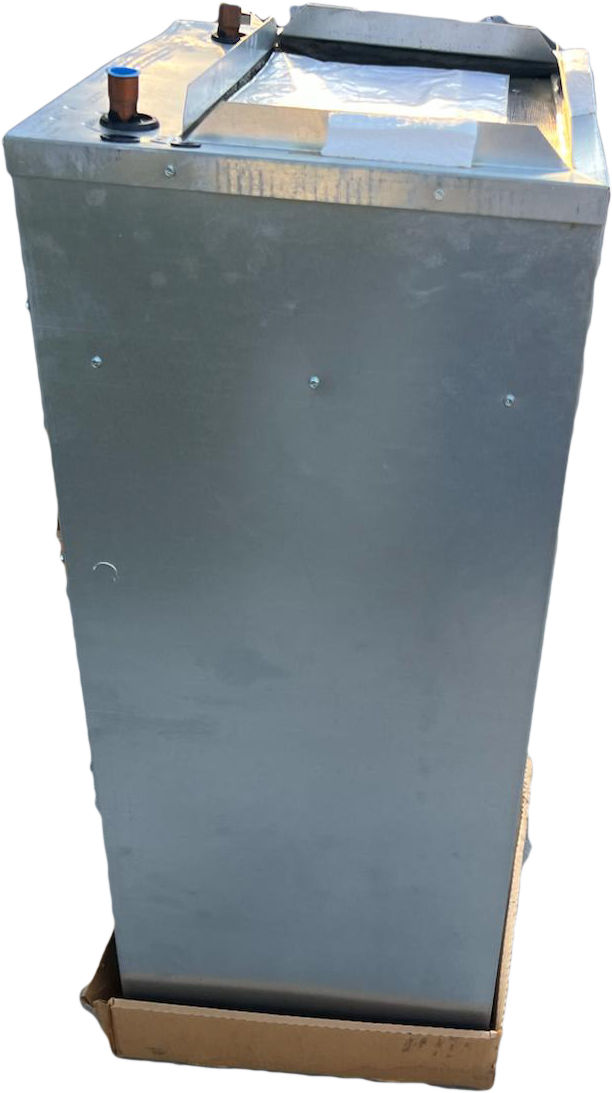

First Co Air Handler 25UC0Q3010CPB00AAF 2.0 Ton PSC 3 Row Std Pump HW Piston with Pump Ctrl 120V R32

First Co 25UC0Q3010CPB00AAF — 2.0-Ton R-32 Wall/Closet Air Handler
The First Co 25UC0Q3010CPB00AAF is a 2.0-ton R-32 air handler with a 3-row hot water coil and PSC motor, factory-configured for R-32 (A2L). Replaces R-410A variants for new installations.

Cooling Performance
Nominal capacity: 24,000 BTU/h (2.0 ton). At high speed, 0.5″ ESP: 670 CFM. Up to 15 SEER2 with a compatible R-32 outdoor unit.

Hot Water Heating
The 3-row hot water coil produces ~31000 BTU/h at 140F EWT and 2.0 GPM. Compatible with NSF/ANSI-certified boilers and tankless water heaters up to 180F EWT. The micro-processor controls 120V or 24V zone valves directly without additional relay hardware.

Installation
Up flow wall/closet installation. Cabinet: 22.125 x 18 x 43″ (W x D x H). 0″ clearance to combustibles. Liquid: 3/8″, Suction: 5/8″. Primary and secondary condensate drains. 1″ filter standard.

Electrical
Supply: 120V/1/60. MCA: 8A. Max fuse: 15A. 24V transformer included.

Certifications
Cabinet air leakage ≤2% per ASHRAE 193. HW coil approved for NSF/ANSI-certified water sources up to 180F. 0″ clearance to combustibles.

Product Specifications
Air Handler Type    Wall / Closet Indoor Air Handler
CFM High @ 0.3 ESP    760
Depth    18"
Height    43"
Liquid Conn.    3/8"
Max. Fuse Size    15
Min. Circuit Amps    8
Motor Type    PSC
Nom. CFM    800
Nom. Tons    2
Refrigerant    R-32
Suction Fitting    5/8"
TXV Included    No
Volts    120
Width    22.13
Wt. Lbs.    100
Shipping Weight    125.00
Shipping Width    22.00
Shipping Length    18.00
Shipping Height    43.00
