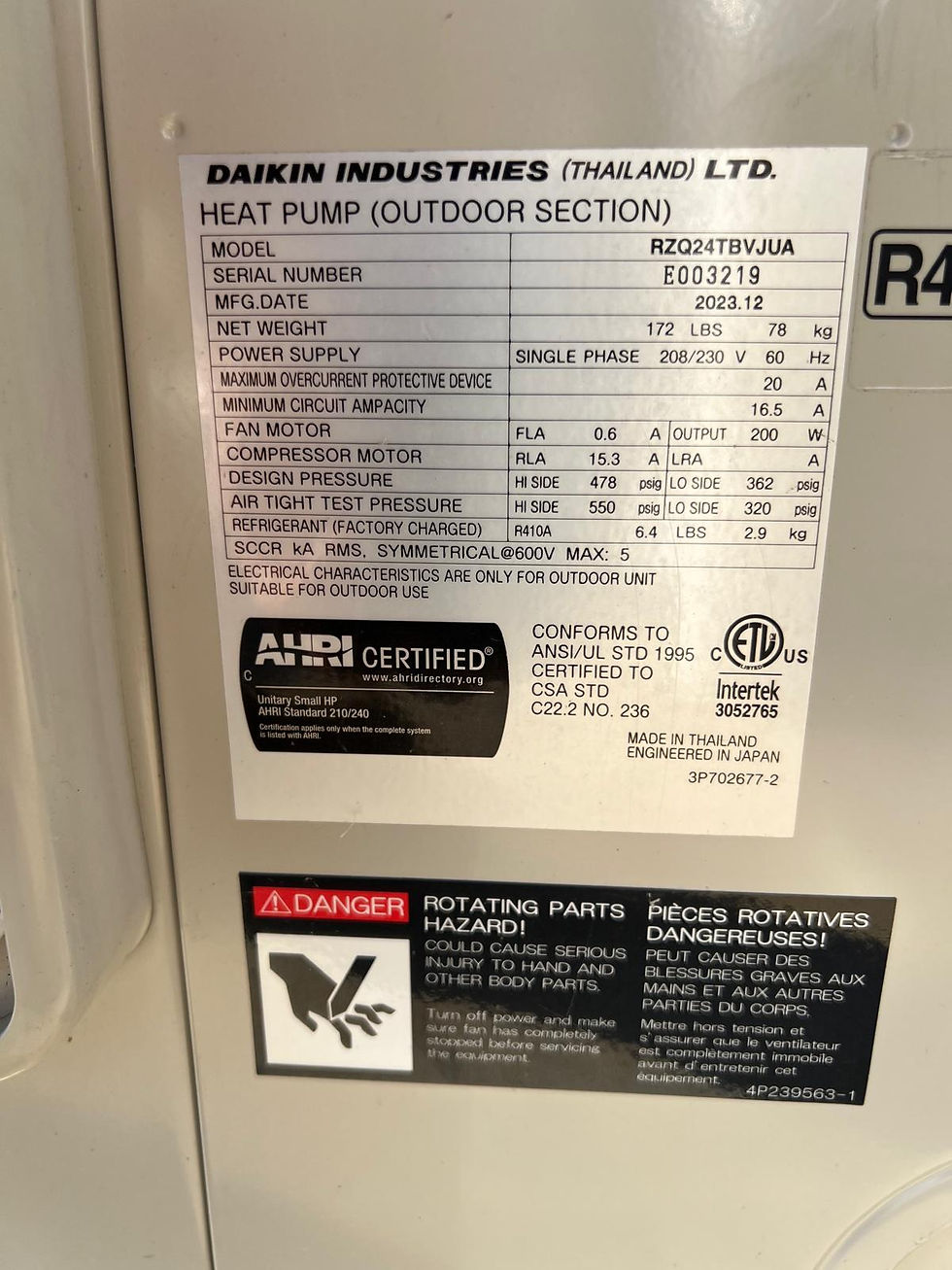

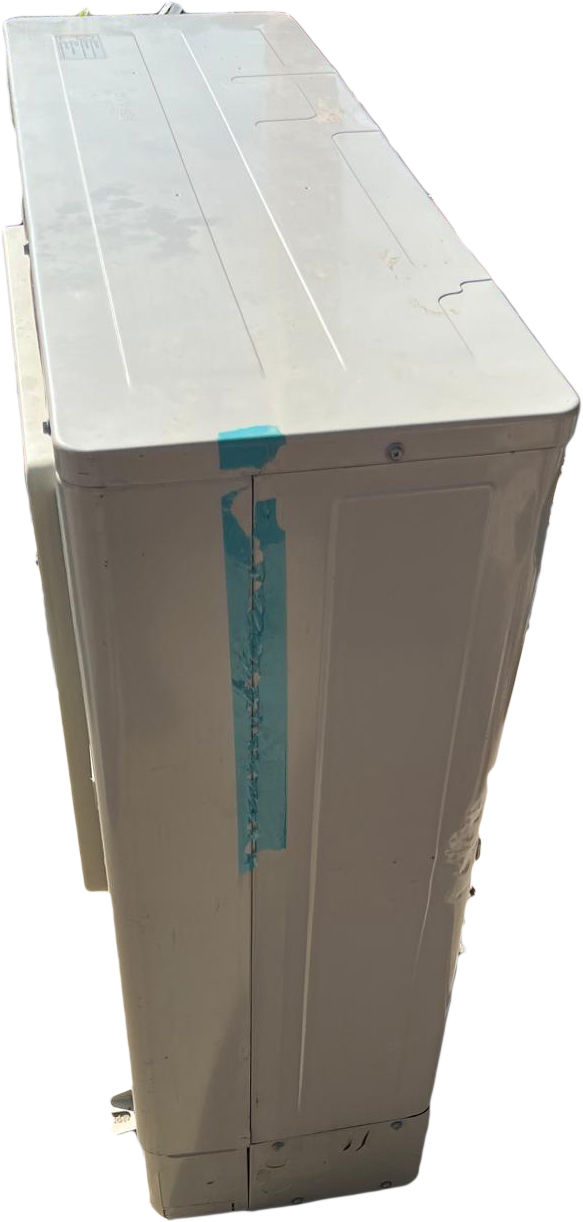

DAIKIN SkyAir RZQ24TBVJUA 2 ton Heat Pump Outdoor Unit

SkyAir is the ultimate ducted and duct free solution for light commercial and residential whole house applications. Ranging from 18,000 Btu/h to 48,000 Btu/h, these innovative systems provide energy efficiency, technological reliability and installation flexibility.
DC fan motor improves efficiency compared to conventional AC motors
Aero spiral fan and grille minimizes turbulence and increases sound reduction
Reluctance brushless DC compressor increases efficiency compared to fixed-speed compressor technology
Long piping lengths up to 230 ft. allow layout flexibility
Anti-corrosion treatment on the outdoor heat exchanger increases durability
Energy-Intelligent™ technology with variable speed compressors for small offices, shops, retail, stores, restaurants, banks, or technical cooling
Provides reliable and high quality comfort with a smart use of energy and flexible installation and operation

SPECIFICATIONS

Series   RZQ_TA Series
Model   RZQ24
SEER Rating   18.6
Cooling BTU Rating   24000 Btu/hr
Tonnage  2 ton
HSPF Rating    9.1
Voltage Rating   208/230 V
Amperage Rating   16.5 A
Refrigerant Type   R-410A
EER Rating   12
Frequency Rating   60 Hz
Phase 1 ph
Compressor Type Hermetic Sealed Swing
Liquid Line Size 3/8 in
Suction Line Size  5/8 in
Fuse Rating  20 A
Material   Steel
Finish   Galvanized
Color  Ivory White
Additional Information
Overall Depth 12-5/8 in D
Overall Width   37 in
Overall Height  39 in
Cooling CFM Rating   2682 cfm
Shipping Weight 250 lbs
