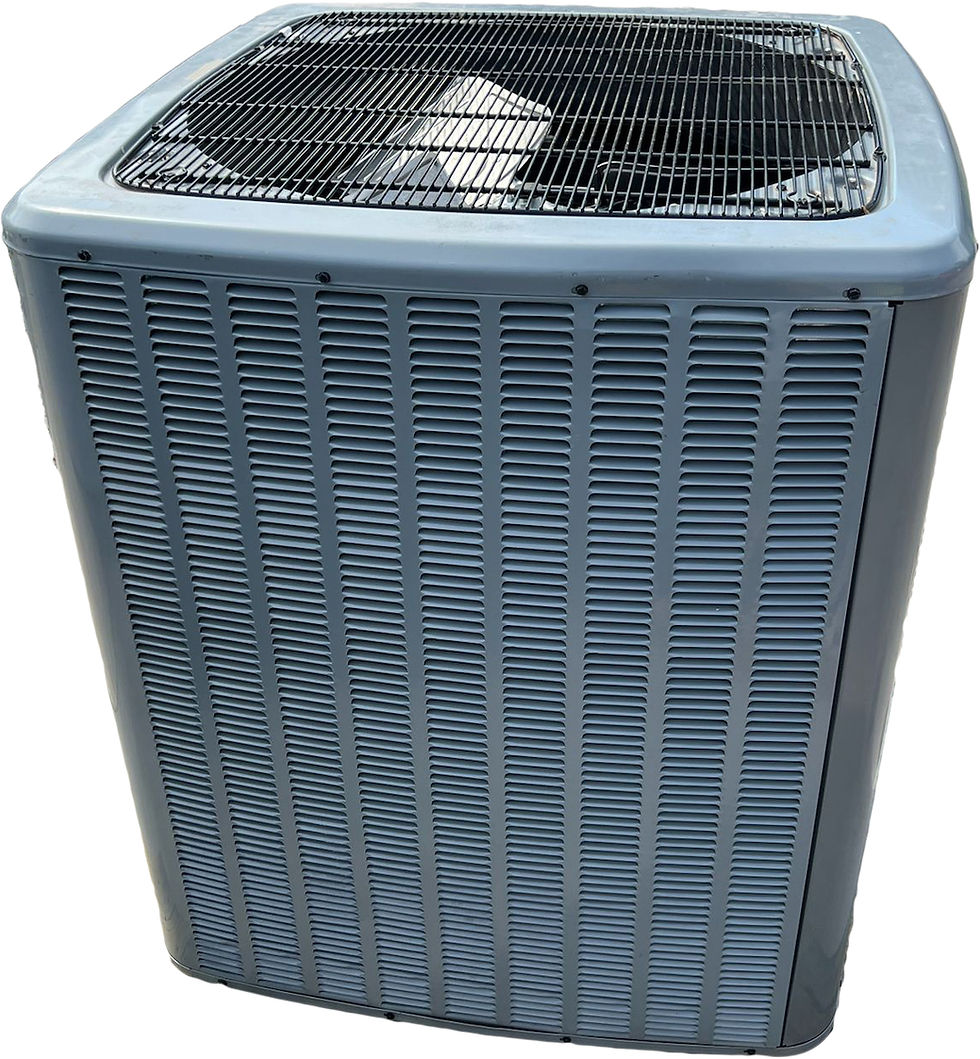

Daikin 10 Ton 11.2 EER Commercial Air Conditioner Condenser

DX14XA1203AA

The Daikin Air Conditioner Condensing Unit provides energy-efficient cooling performance in one self-contained unit. This unit is suitable for ground-level or rooftop installations. The design includes an Innovative louvered sound control top.
Standard Features
R-410A chlorine-free refrigerant
Energy-efficient scroll compressor
Factory-Installed Filter Drier
Single panel access to controls
Heavy-gauge galvanized-steel cabinet
Attractive Nickel Gray powder-paint finish
AHRI Certified; ETL Listed

Refrigerant Charge    Pre-Charged For: 15'
Weight (in lbs)    345.000000
Brand/Manufacturer    Daikin
Replaces    DX11TA1203
Cooling BTU    120,000 BTU
Decibel Level (dBA)    84 Decibels
Refrigerant    R410A
EER    11.2
IEER    14.8
Condenser Stages    Two Stage
Compressor Type    Scroll
Liquid Valve Size    5/8"
Suction Valve Size    1 3/8"
Electrical    208/230v 3 Phase 60 Hz
Phase    Three Phase
Max Breaker Size    70 Amps
Min. Breaker Size    46.4 Amps
Tonnage    10 Ton
Height    41.5"
Width    35.5"
Depth    35.5"
Warranty    5 Years with Online Registration
