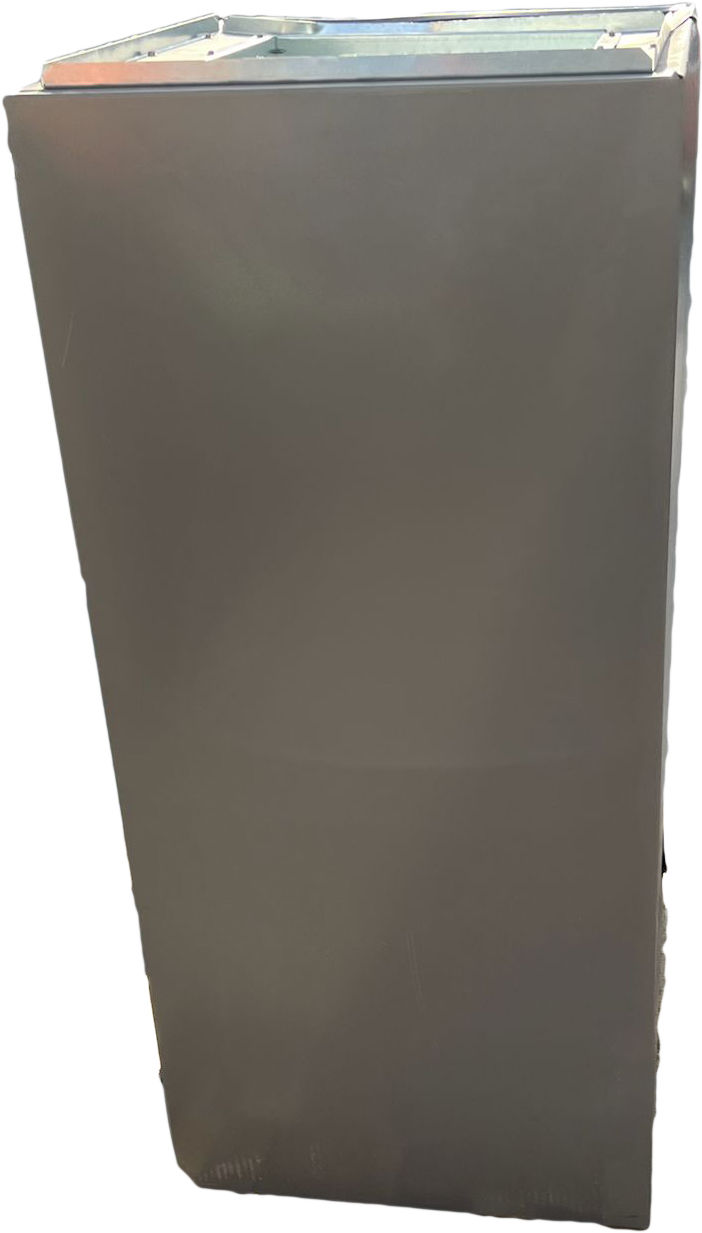

ADP FEMTT4960S003A 5 Ton LowProfile Air Handler Multi-Position A/C-HP Ready TXV ECM Motor 0kW Electric Heat 120/1/60

Cabinet Features
Available from factory as upflow or upflow/horizontal. Field installed horizontal drain pan kit also available.
Downflow kit available for field installation.
Two independent front access panels allow for easy access to clean the coil, even after installation.
Only four (4) screws to remove blower panel for easier access.
Slide-out blower and coil assemblies.
Cabinet constructed of heavy gauge painted steel.
High quality 5/8" foil-faced insulation lines cabinet, with cabinet flanges & retaining rods for better attachment.
Brackets hold coil assembly in place when installed in horizontal position.
Filter rack built into every air handler (filter not included).
ETL lab tested 2% or less cabinet air leakage for better efficiency.

Evaporator Coil Features
Coils are air pressure tested at 500psi, leak tested with helium, sealed with rubber plugs, and then charged with dry air.
Suitable for use with R-22 and R-410A.
Available in copper or aluminum construction.
HYDROTECTM drain pan holds less water, which reduces the possibility of mold and mildew growing in the pan.
All drain pans have Microban protection, which inhibits the growth of mold and mildew that cause odors and staining.
Drain pans are molded of corrosion proof engineered polymer.
Dual 3/4" FPT condensate drains on left and right sides.

Specifications
Height    48
Length    26
Tonnage    5
Weight    155
Width    21.88
AHRI - Usage    Indoor AHU
Approvals    ETL Listed
CFM    2,000
Cooling Capacity    60,000
Country of Origin    USA
Energy Star Rated    No
Prop 65    Yes
Air Flow Direction    Multi-Position
Blower Motor HP    1
Blower Motor Speeds    5
Blower Motor Type    ECM (Electronically Commutated Motor)
Blower Wheel Width    10"
Rotation    Counter Clockwise (CCW)
Blower Wheel Diameter    10"
Brand    Advanced Distributor Products
Equipment Type    Straight Cool
Product Family    F Series
Stage    1
Coil Shape Designation    A-Coil
Amps    11.1
Cycle/Hertz    60 Hz
Electric Heat Range [kW]    0
Maximum Overcurrent Protection (MOCP)    15
Phase    Single
Substantial Commodity    Steel; Copper; Aluminum
Voltage    120 VAC
Drain Connection Quantity    2
Drain Connection Size    3/4"
Liquid Line Size (OD)    3/8"
Metering Device    TXV/TEV - Thermostatic Expansion Valve
Refrigerant    R-410A
Suction Line Size (OD)    7/8"
Filter Size    18 x 25 x 1
Includes Filter Rack    Yes
Heat Pump Compatible    Yes
Liquid Line Fitting Type    Sweat or Braze
Maximum Pressure (PSI)    640
Suction Line Fitting Type    Sweat or Braze
Cased    Yes
